• High-Voltage Permanent Magnet Synchronous Drive & Pump Motor Design

    ● Enhanced Performance & Efficiency: Superior design ensures highly efficient operation.

    ● Higher Voltage, Lower Losses: Elevated voltage reduces current, minimizing cable heat generation and energy loss for greater overall efficiency.

    ● Permanent Magnet Synchronous Motor (PMSM): Utilizes PMSM technology for lower overall truck energy consumption.

    ● Speed&Gradeability: Travel Speed reaching 20 km/h, Max. Gradeability up to 20%

    Motor-driven variable pump

    ● Hydraulic flow is distributed on demand for precise movement and higher energy efficiency.

    Simultaneous multi-function operation

    ● Boom lifting, telescoping, spreader movement and travel functions can be coordinated for higher productivity.

    Long Endurance & Fast Charging

  • Dynamic Anti-Rollover Protection:

    Utilizes EU CE-certified COBO&B3B6 dynamic torque protection technology combined with a matrix precision weighing system.

    It monitors load and height in real-time to intelligently control speed and eliminate rollover risks.

    High-Voltage Electrical Protection:

    Features high-voltage interlock, real-time insulation detection, and a Manual Service Disconnect (MSD).

    The Li-on battery achieves IP67 protection, making it impervious to rain and dust.

    Active Safety Features: standard equipped with a rearview camera, radar, and alarm system, complemented by electronic parking brakes

     and overload protection to safeguard both personnel and equipment.

    Intelligent Thermal Management System (TMS): Features a high-efficiency water-cooling cycle for the battery, motor, and controller.

    It dynamically adjusts cooling capacity to keep core components at their optimal operating temperature.

    Independent Hydraulic Cooling: Utilizes independent hydraulic oil cooling lines and a closed-loop cooling system to ensure stability and

     longevity under long-term, high-load operations.

    Robust & Durable Chassis: Key structural components undergo high-standard welding and rigorous flaw detection. The extended wheelbase design further enhances overall truck stability.

  • Ergonomic & Comfortable Cabin

    Panoramic Visibility Design: The all-new cabin features large curved glass and a triple-wiper system, complemented by a HD rearview camera to eliminate blind spots.

    User-Friendly Control Layout: Integrated multifunctional joysticks, an adjustable steering column, and a suspension seat place all controls within easy reach, significantly reducing operator fatigue.

    Convenient Amenities: Features a large digital dashboard and USB charging ports, providing clear status updates and keeping devices charged.


  • Superior Thermal Management & Reliability

    Intelligent Thermal Management System (TMS): Features a high-efficiency water-cooling cycle for the battery, motor, and controller. It dynamically adjusts cooling capacity to keep core components at their optimal operating temperature.

    Independent Hydraulic Cooling: Utilizes independent hydraulic oil cooling lines and a closed-loop cooling system to ensure stability and longevity under long-term, high-load operations.

    Robust & Durable Chassis: Key structural components undergo high-standard welding and rigorous flaw detection. The extended wheelbase design further enhances overall vehicle stability.

  • Easy Maintenance & Serviceability

    Modular Maintenance Design: The travel and hydraulic systems are driven by independent motors without couplings, offering high transmission efficiency and lower maintenance costs.

    Service-Friendly Layout: The cabin features a movable design with large access ports. Independent layouts for brake and hydraulic tanks make daily inspections and maintenance effortless.

Media Gallery

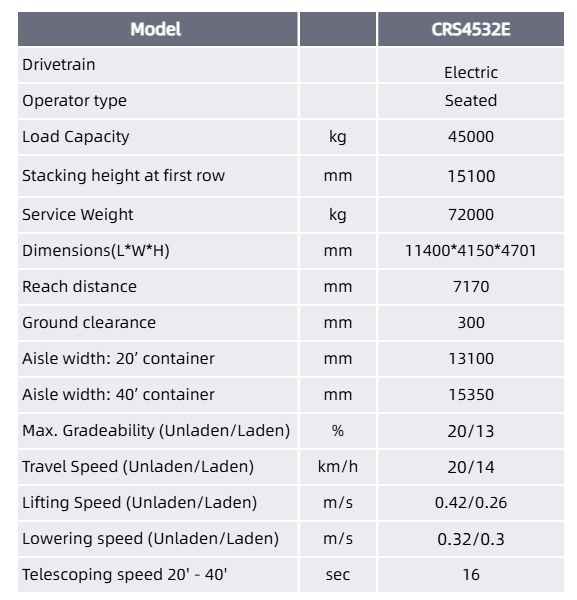

Product Specifications
